ELLIPSE - Multi-Mount Base for Digiplate Systems (pre-order)

ELLIPSE - Multi-Mount Base for Digiplate Systems (pre-order)

Name: ELLIPSE - Multi-Mount Base for Digiplate Systems (pre-order)
Brand: Gelatin
Price: 120.00 EUR
Availability: InStock

€120,00

PRE-ORDER - SHIPPING 1st DECEMBER 2026

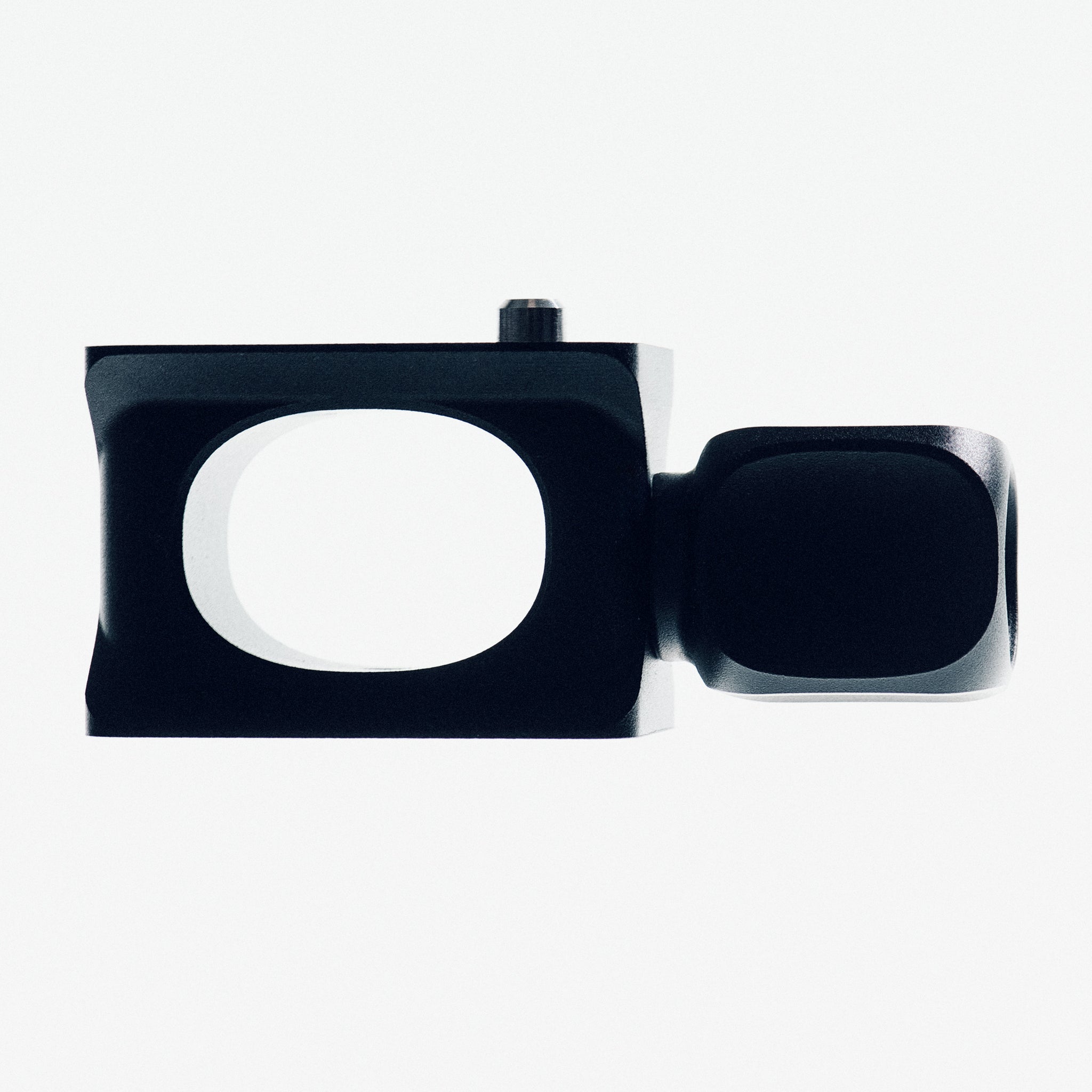

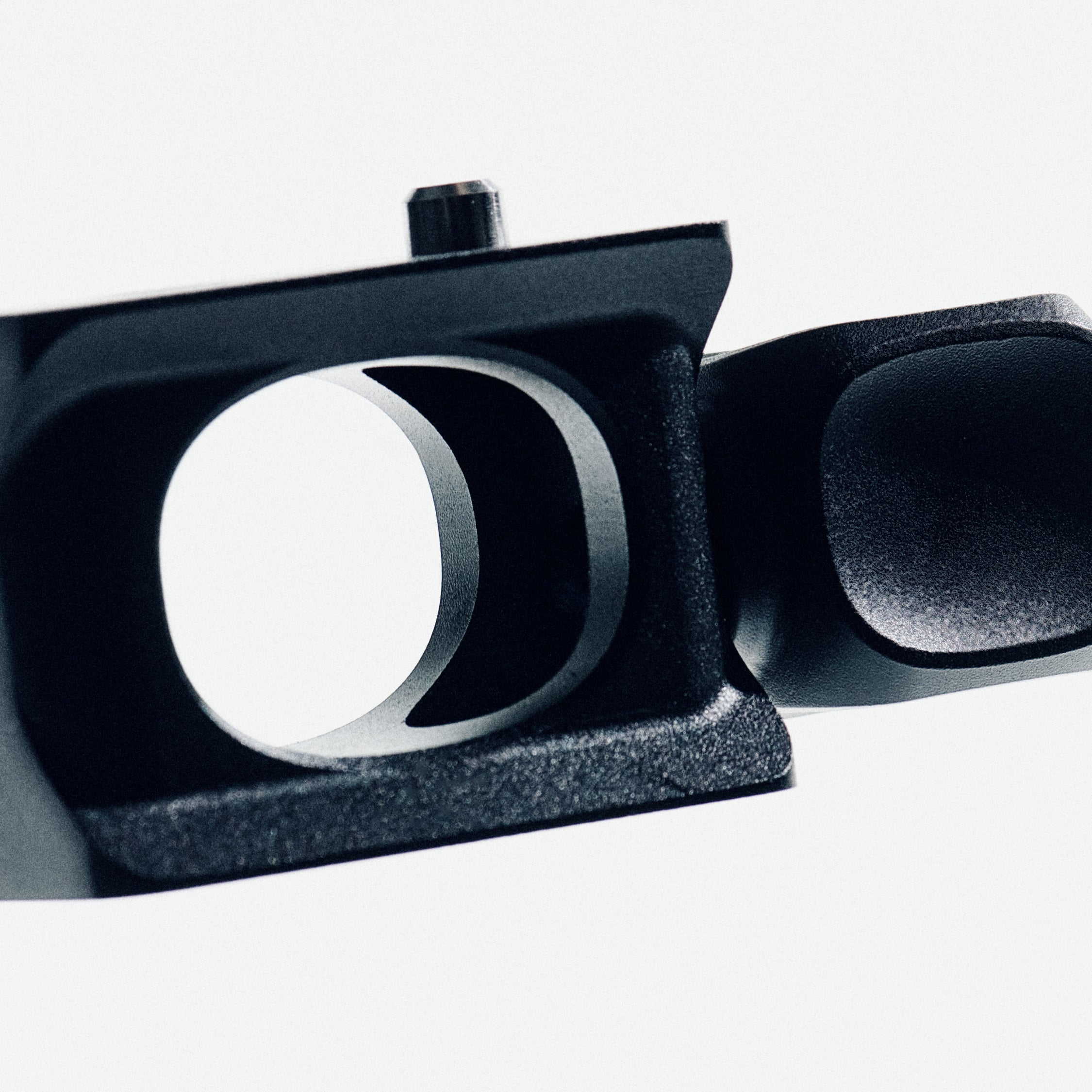

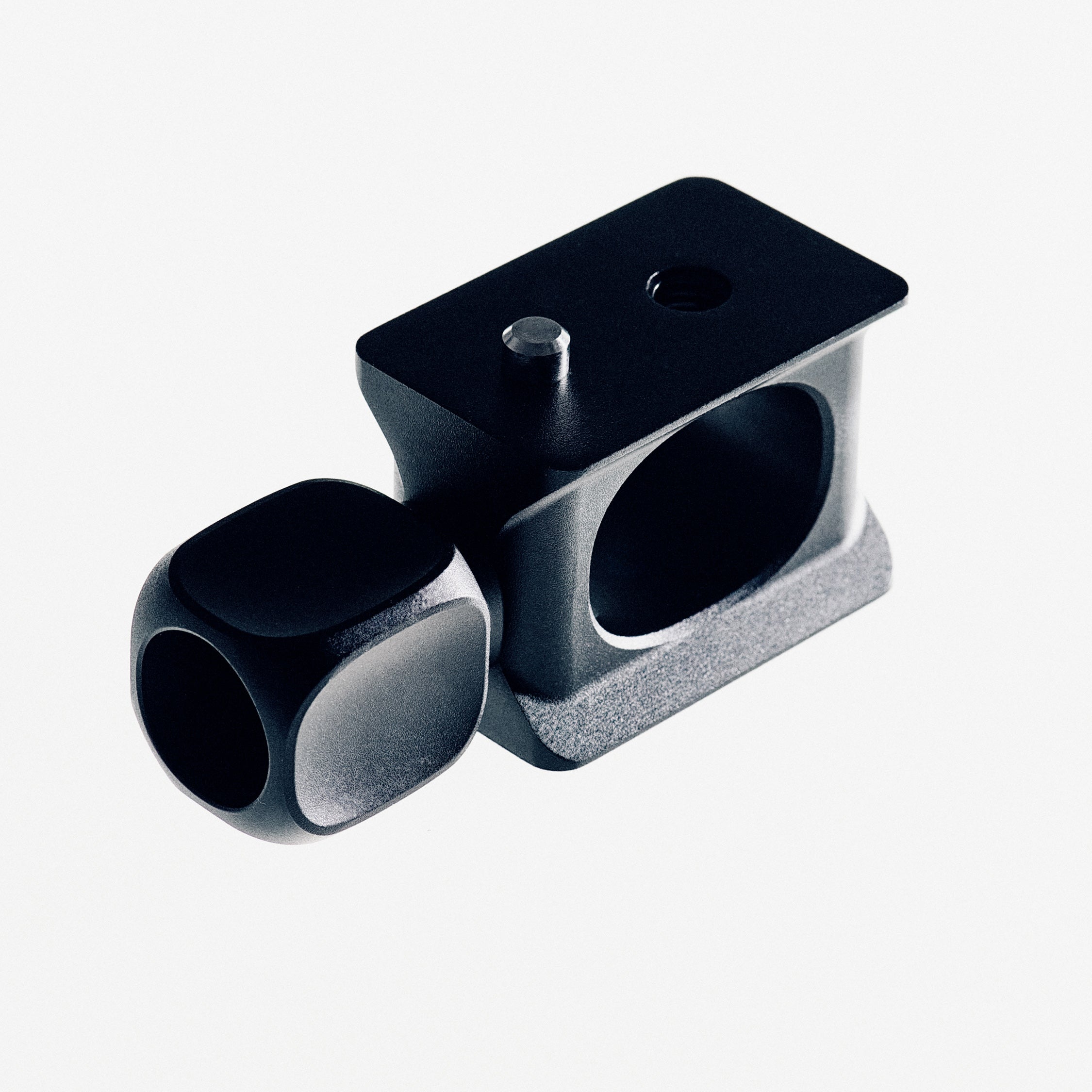

ELLIPSE is a compact multi-mount base for any digiplate system built around the superellipse — a geometric form that sits between a rectangle and an ellipse, chosen for how efficiently it distributes material. Arca Swiss dovetail, 3/8"-16, 1/4"-20, and baby pin, all in a single 38mm body. No switching between interfaces, no separate adapters — every mount lives in the same part.

The form itself is the weight saving. The superellipse shape maximises negative space within the base, cutting material everywhere it isn't structurally needed. At 176.7g, ELLIPSE is extremely light.

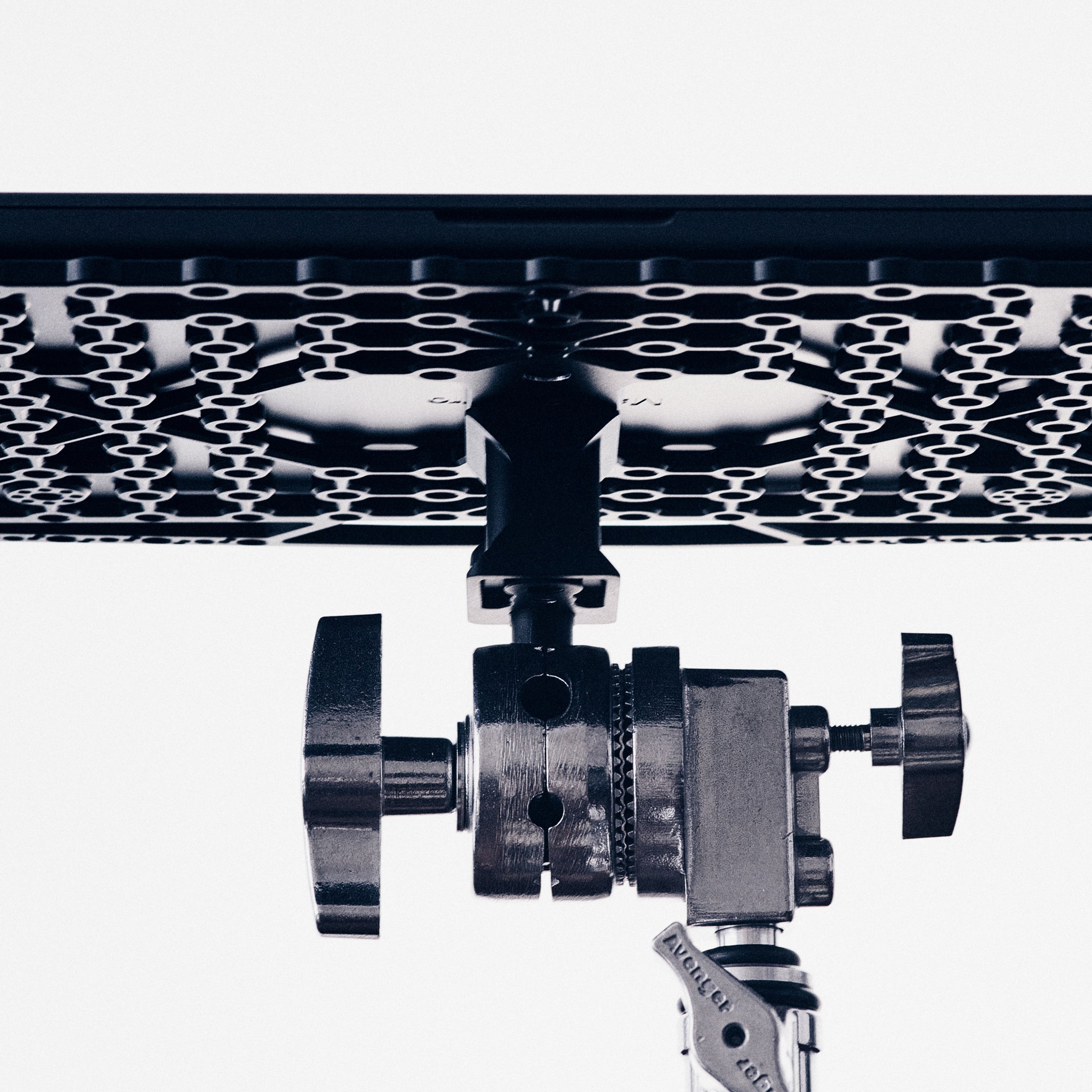

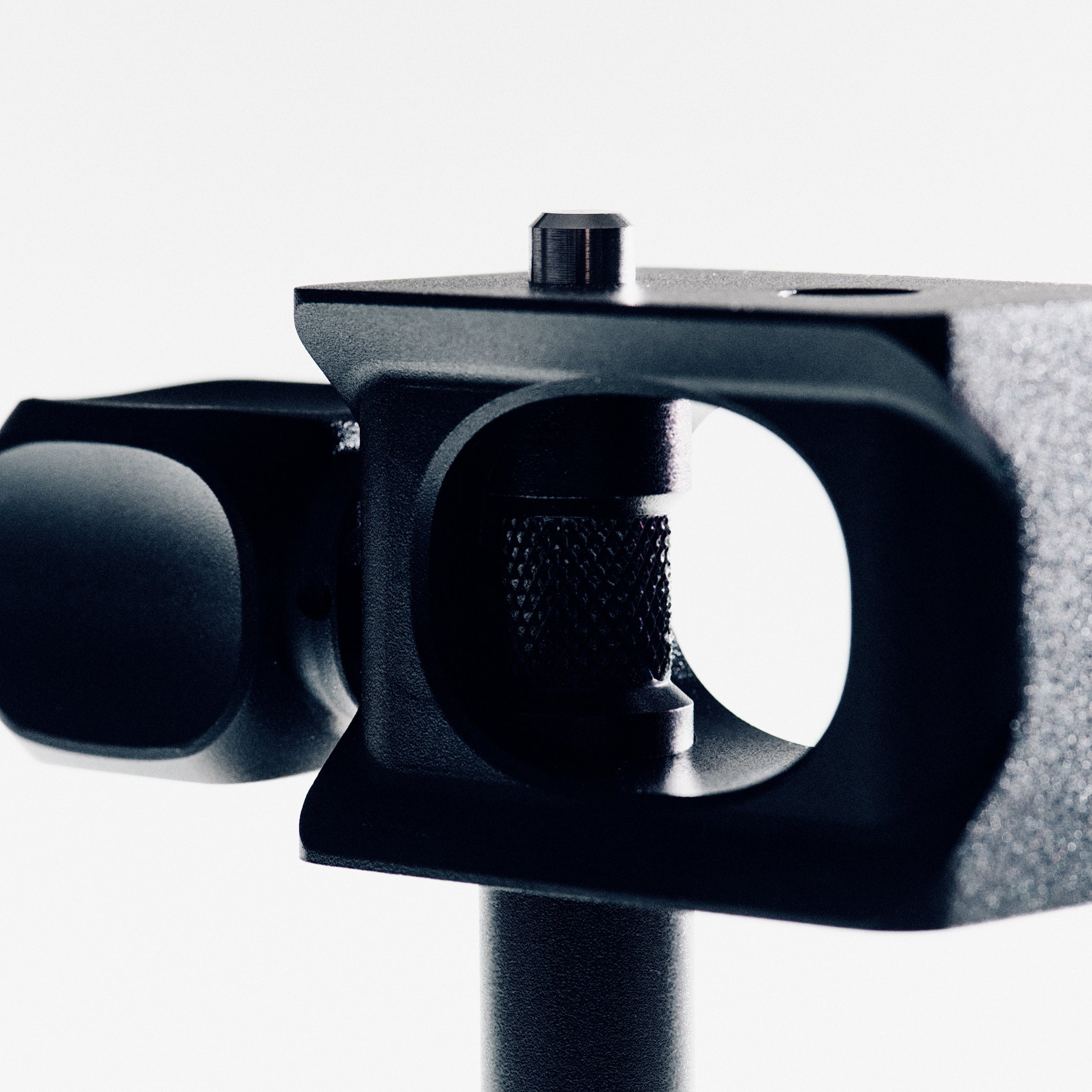

A removable stainless steel 3/8" stud provides anti-rotation when attached to the plate. ELLIPSE mounts to any digiplate with the included 3/8"-16 countersunk screw.

Key Features

Four Mounting Interfaces, One Body: Arca Swiss dovetail, 3/8"-16, 1/4"-20, and baby pin — all built into the same part.
Superellipse Construction: Maximises negative space to minimise weight, without compromising rigidity.
Lightest in Its Class: 176.7g — lighter than any comparable mounting base on the market.
Removable Anti-Rotation Stud: Stainless steel 3/8" stud prevents rotation when mounted to a baby pin.
Universal Digiplate Mounting: Mounts to any digiplate with the included 3/8"-16 countersunk screw.
6061-T6 Aluminium Construction: Same hard anodized, sandblasted finish as the rest of the Lamina system.

Product Details

Material: 6061-T6 aluminium
Finish: Hard anodized, sandblasted
Dimensions: 60 x 42 x 38mm
Weight: 176.7g
Mounting interfaces: Arca Swiss, 3/8"-16, 1/4"-20, 5/8" baby pin
Anti-rotation: Removable stainless steel 3/8" stud
Compatibility: Any digiplate system
