Carbon Shady x Eizo: Installation Guide
Thank you for choosing the Carbon Shady for your Eizo monitor. This guide will walk you through the quick and easy steps to install the Carbon Shady on both 24" and 27" Eizo models. The installation uses magnetic mounting for a sleek, tool-free setup.
step 1
Prepare the Monitor
1. Clean the Surface
Before applying the steel plates, make sure the edges of your monitor are clean. Use a microfiber cloth and a mild cleaner to gently wipe down the top, bottom, and side edges of the monitor.
2. Place the Monitor Face Down
Place the monitor face down on a flat, soft surface, such as a table with a cloth or foam padding, to protect the screen during installation.
step 2
1. Position the Shade on the Top Edge

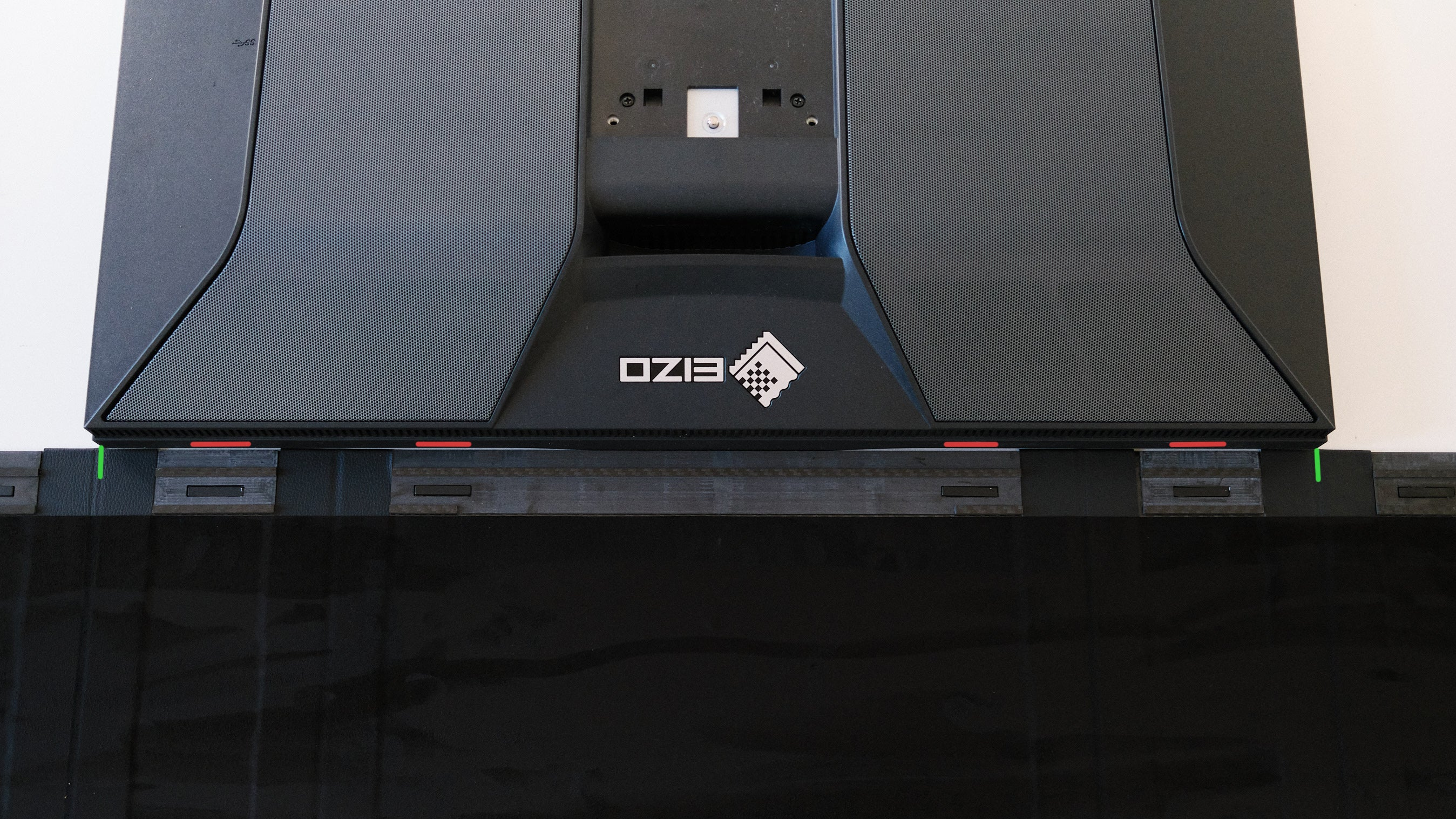

Start by aligning the Carbon Shady to the top edge of the monitor. The outer hinges of the sun shade should align with the sides of the monitor.
2. Place the Steel Plates

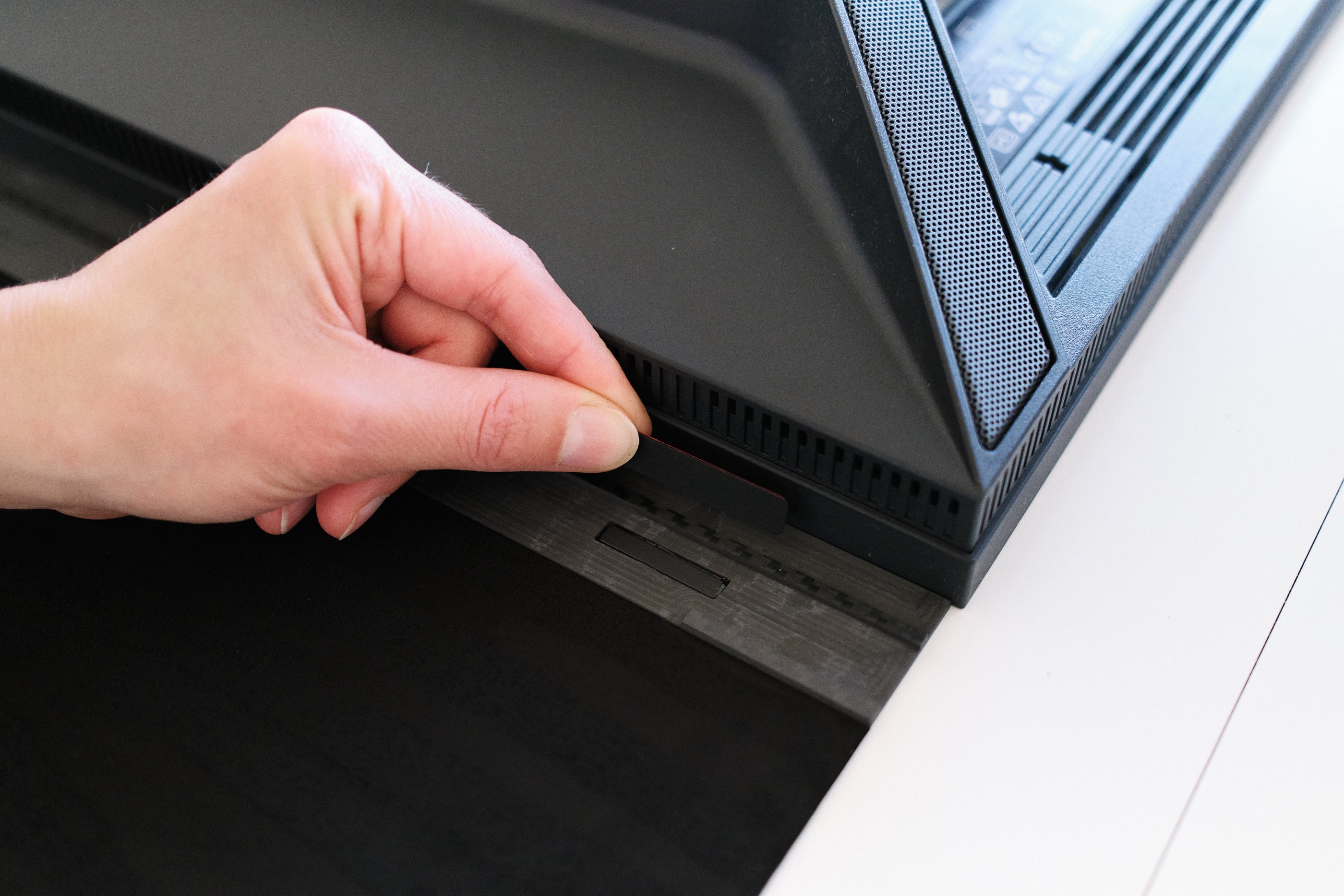

Take 4 of the self-adhesive steel plates and place them evenly along the top edge of the monitor, ensuring they align with the magnets on the Carbon Shady. Press firmly to secure.
1. Bottom Edge

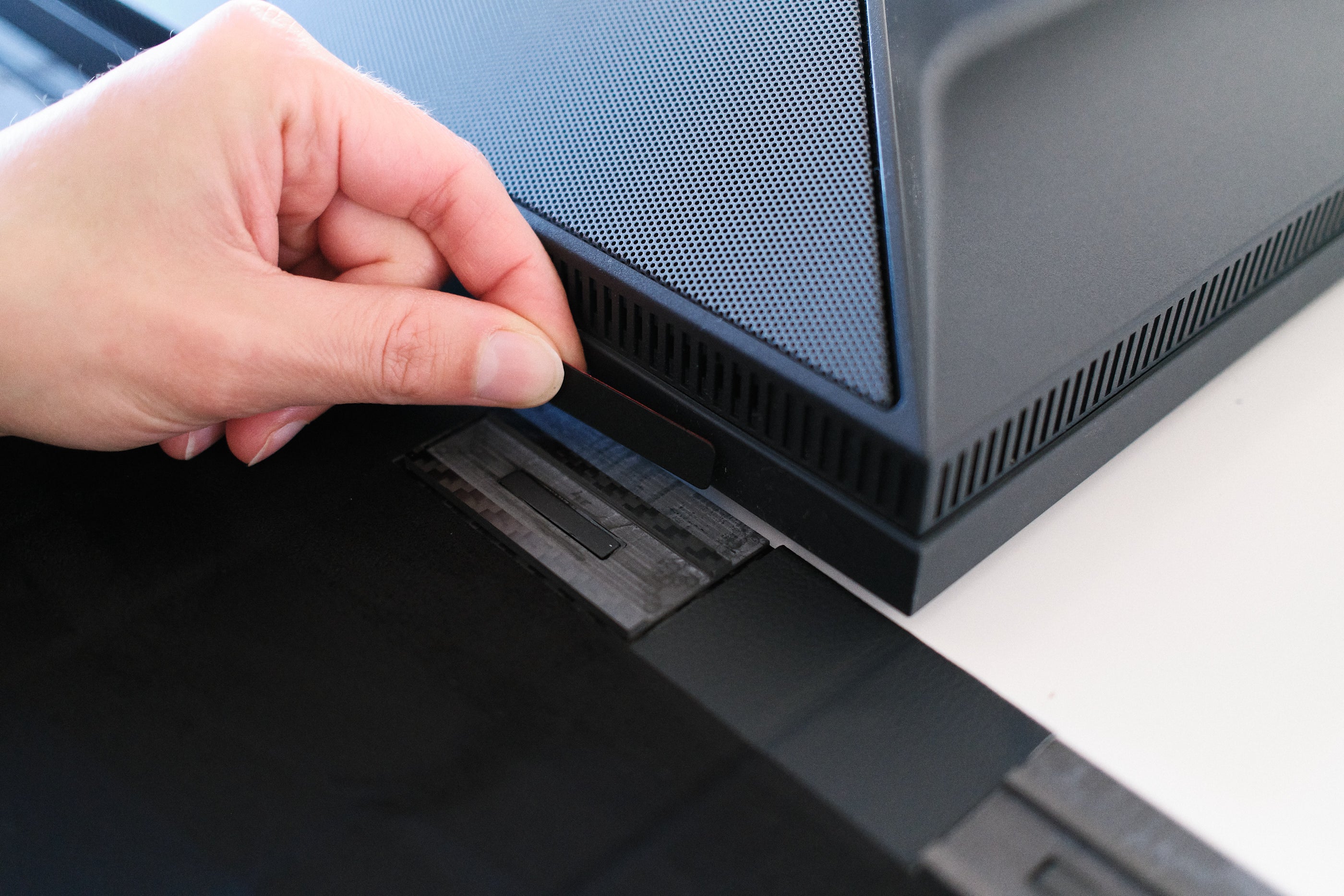

Align the Carbon Shady with the bottom edge of the monitor. Attach the 4 steel plates to the bottom, making sure they are aligned with the shade's magnets.
2. Side Edges

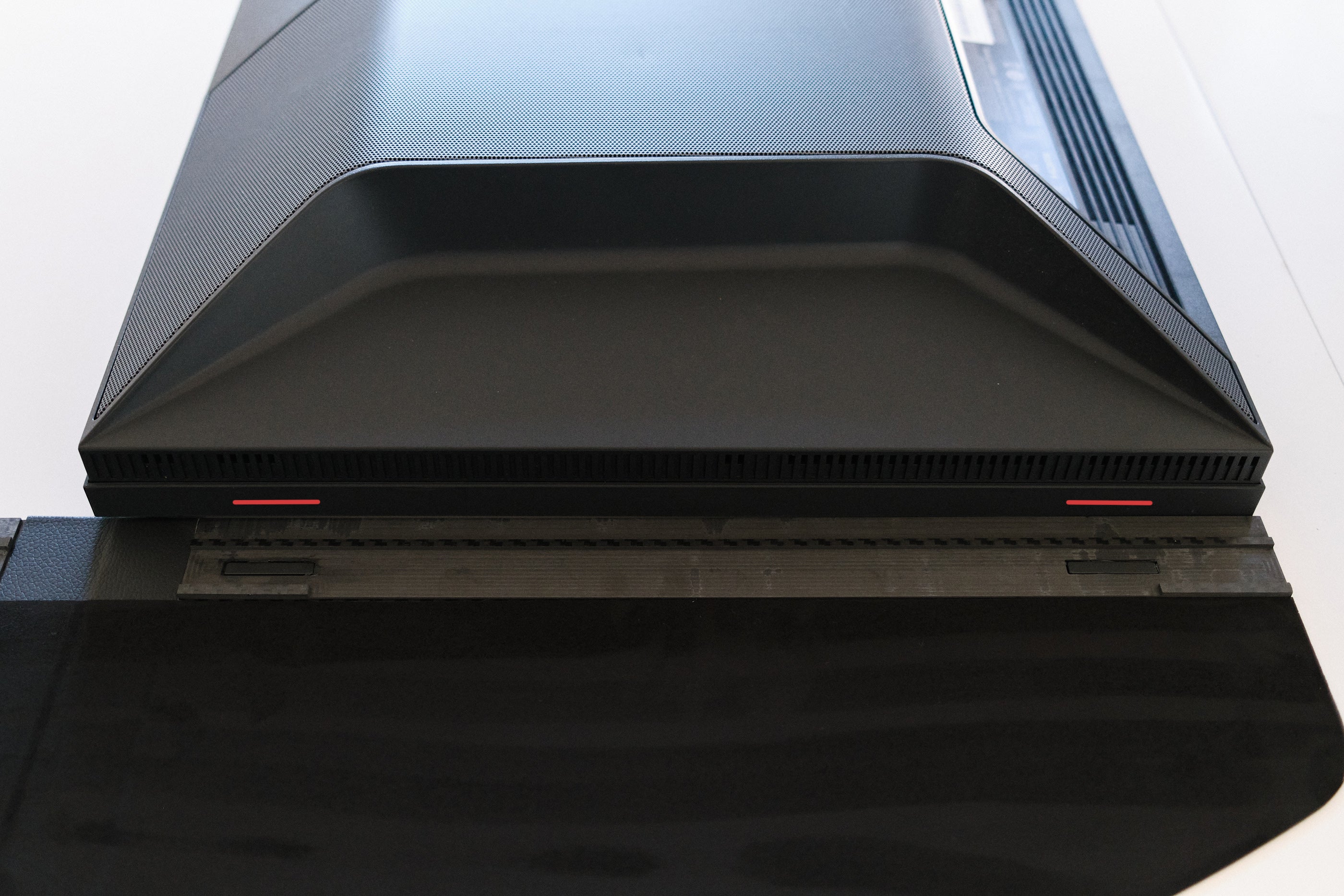

Align the side panel of the Carbon Shady with the edge of the screen and place 2 steel plates aligned with the magnets on the side panels.
3. Press Firmly
After placing the plates on all sides, press firmly on each one to ensure proper adhesion.
4. Allow the Adhesive to Set
Wait at least 15 minutes for the adhesive to cure before proceeding.
Attaching the Carbon Shady
1. Magnetic Mounting

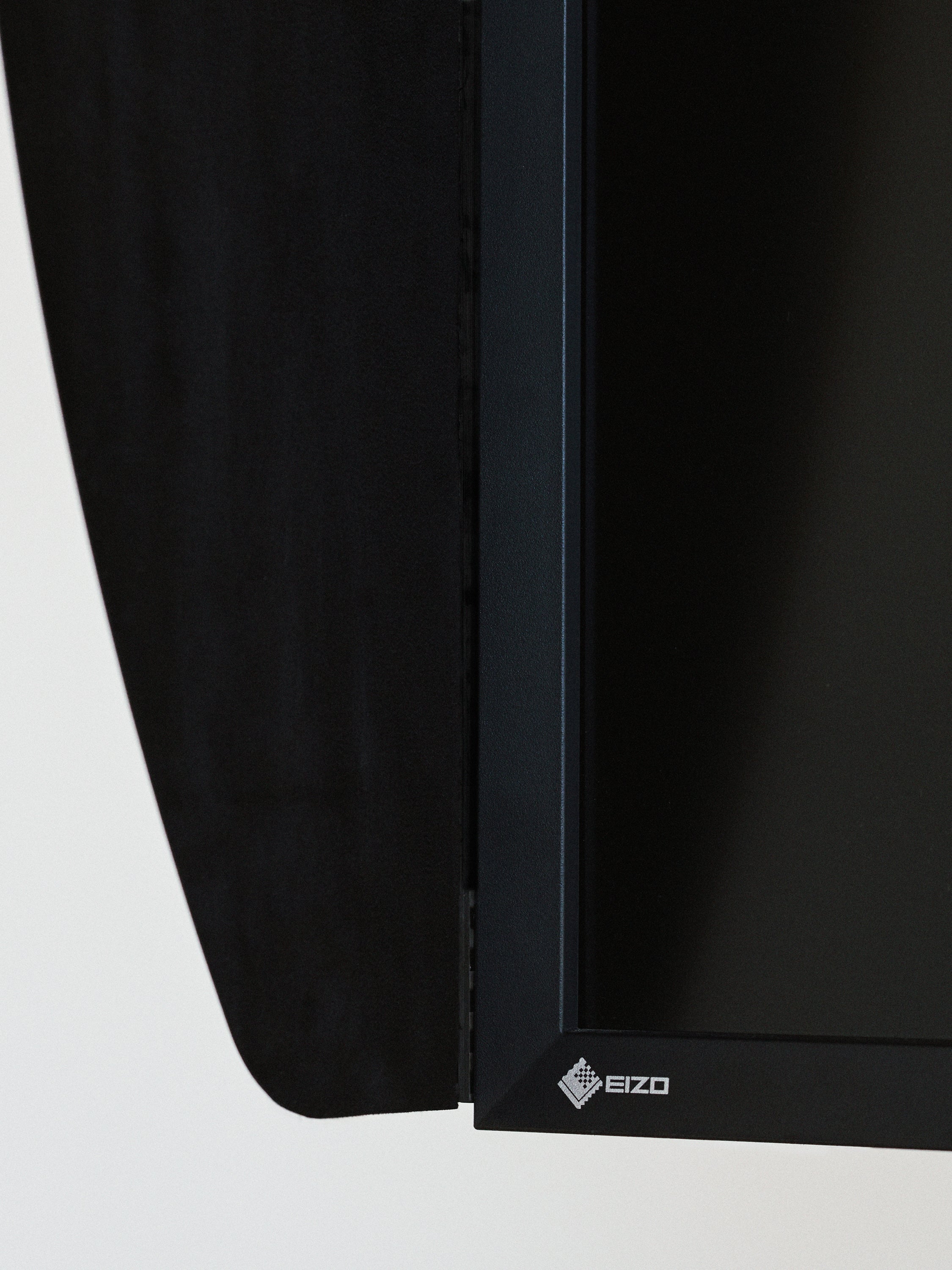

Once the steel plates are in place, align the Carbon Shady with the monitor’s edges. The magnets will securely snap into place on all sides, holding the shade in place.
2. Check for Stability
Verify that the Carbon Shady is securely attached and aligned properly.

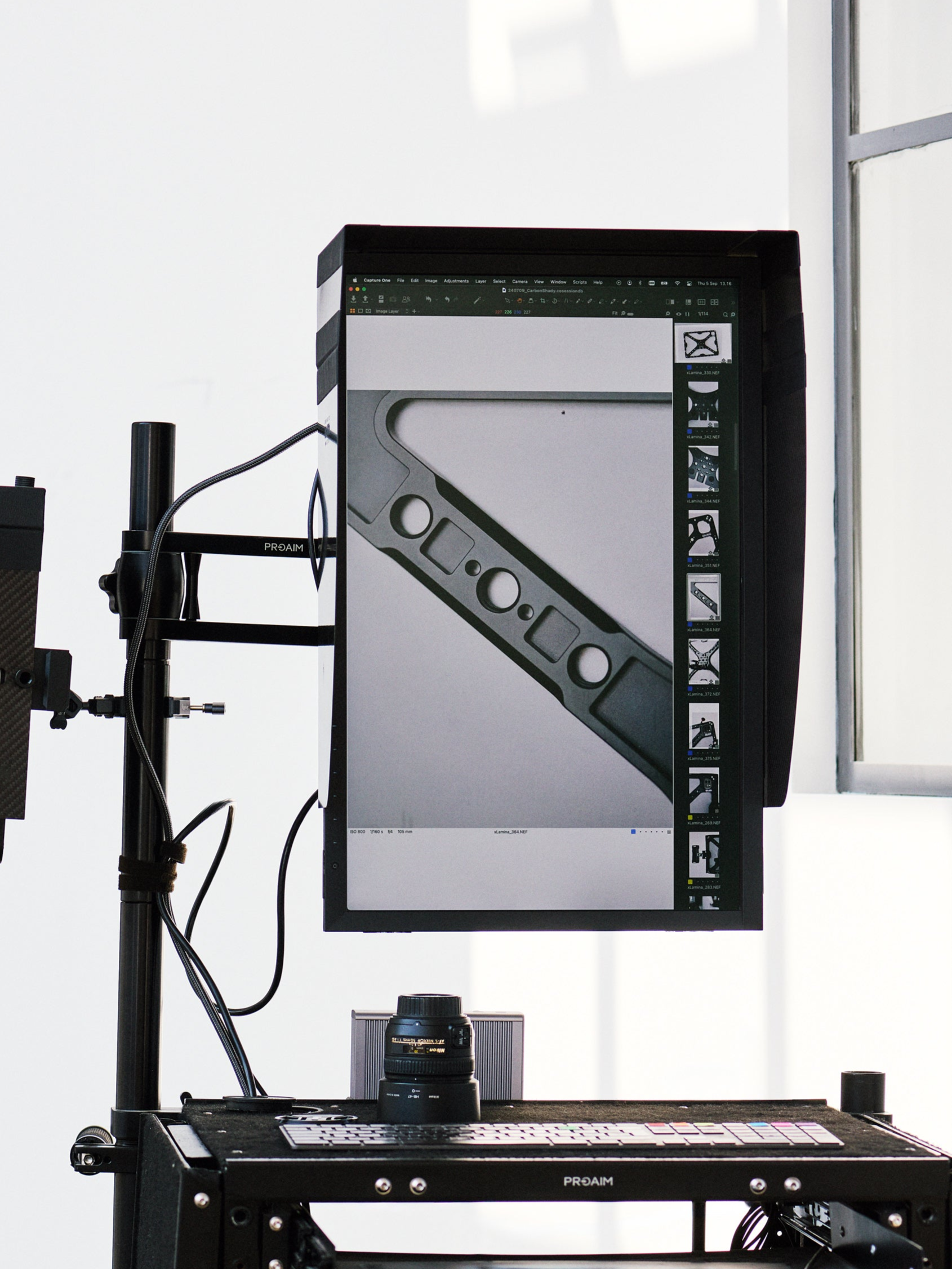

Switching orientation
Important Note

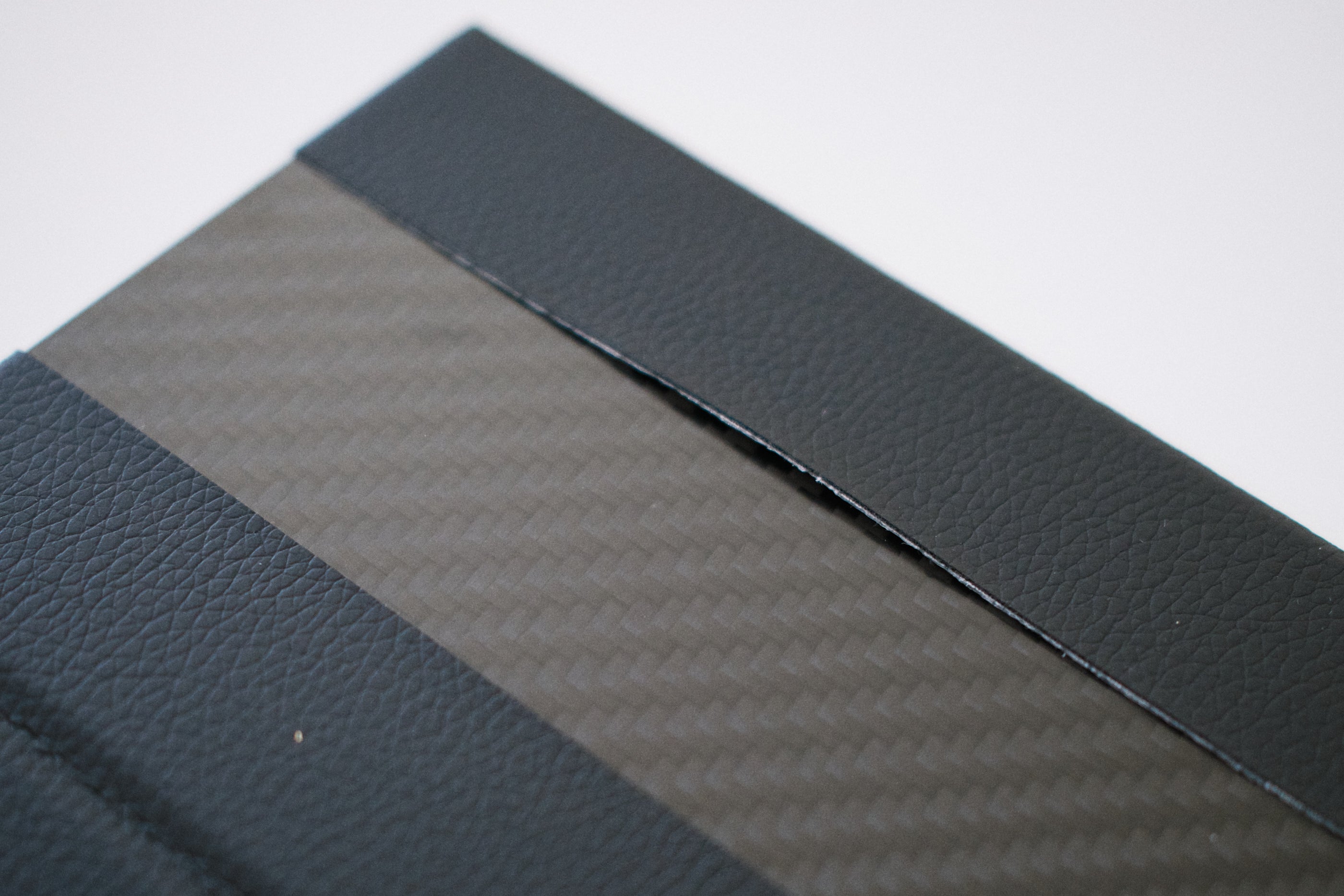

In some cases when you receive the shade, the leather material (which holds the plates together) may be slightly unstuck (see photo below). This happens after assembly when the hinge is folded and the material stretches. When shades are shipped straight after assembly, they don't have time to settle, so if this has happened on your shade, simply press it firmly in place by running your thumb lengthwise, and it will stick permanently.
Care and Maintenance
Cleaning
Clean the Carbon Shady with a soft, lint-free cloth. Avoid harsh chemicals or abrasive materials.
Storage
When not in use, store the Carbon Shady in a dry, safe place by detaching it from your monitor.
